You can configure DPD modes of operation. The default optimized mode sends DPD messages to the peer if there is no incoming IKE or IPsec traffic within a configured interval after the local device sends outgoing packets to the peer. Other configurable options include the interval at which DPD messages are sent to the peer the default is 10 seconds and the number of consecutive DPD messages sent without receiving a response before the peer is considered unavailable the default is five consecutive requests.

Dead peer detection DPD is a method that network devices use to verify the current existence and availability of other peer devices. If the device receives traffic on the tunnel from the peer, it resets its R-U-THERE message counter for that tunnel, thus starting a new interval. When the device changes the status of a peer device to be dead, the device removes the Phase 1 security association SA and all Phase 2 SAs for that peer.

This is the default mode. This mode helps in early detection of a downed peer and makes the tunnel available for data traffic.

We recommend that the probe idle tunnel mode be used instead of the always-send mode. The interval parameter specifies the amount of time expressed in seconds the device waits for traffic from its peer before sending an R-U-THERE message. The default interval is 10 seconds. Starting with Junos OS Release The minimum threshold parameter should be 3, when the DPD interval parameter is set less than 10 seconds.

The threshold parameter specifies the maximum number of times to send the R-U-THERE message without a response from the peer before considering the peer dead.

The default number of transmissions is five times, with a permissible range of 1 to 5 retries. When DPD is configured, the establish tunnels immediately option must also be configured at the same time to tear down the st0 interface when there are no phase 1 and phase 2 SAs available. More than one Phase 1 or Phase 2 SA can exist with the same peer because of simultaneous negotiations.

When there is a network problem related to a VPN, after the tunnel comes up only the tunnel status is tracked. Many issues can occur before the tunnel comes up.

Hence, instead of tracking only the tunnel status, tunnel down issues, or negotiation failures, successful events such as successful IPsec SA negotiations, IPsec rekey, and IKE SA rekeys are now tracked.

These events are called tunnel events. When a tunnel event occurs multiple times, only one entry is maintained with the updated time and the number of times that event occurred. Overall, 16 events are tracked: eight events for Phase 1 and eight events for Phase 2. Some events can reoccur and fill up the event memory, resulting in important events being removed.

To avoid overwriting, an event is not stored unless a tunnel is down. AutoVPN tunnels are created and removed dynamically and consequently tunnel events corresponding to these tunnels are short lived. Sometimes these tunnel events cannot be associated with any tunnel so system logging is used for debugging instead. Help us improve your experience. Let us know what you think. Do you have time for a two-minute survey? Maybe Later. Caveats The source interface and destination IP addresses that can be configured for VPN monitor operation have no effect on the IPsec datapath verification.

Understanding Dead Peer Detection Dead peer detection DPD is a method that network devices use to verify the current existence and availability of other peer devices. See Also verify-path. IPsec Overview. If the default-permit policy comes before the VPN-OUT policy, all traffic from the trust zone matches the default-permit policy and is permitted. Fragmentation results in increased use of bandwidth and device resources. We recommend a value of as the starting point for most Ethernet-based networks with an MTU of or greater.

For example, you might need to change the value if any device in the path has a lower MTU, or if there is any additional overhead such as PPP or Frame Relay. To quickly configure this example for SRX1, copy the following commands, paste them into a text file, remove any line breaks, change any details necessary to match your network configuration, copy and paste the commands into the CLI at the [edit] hierarchy level, and then enter commit from configuration mode.

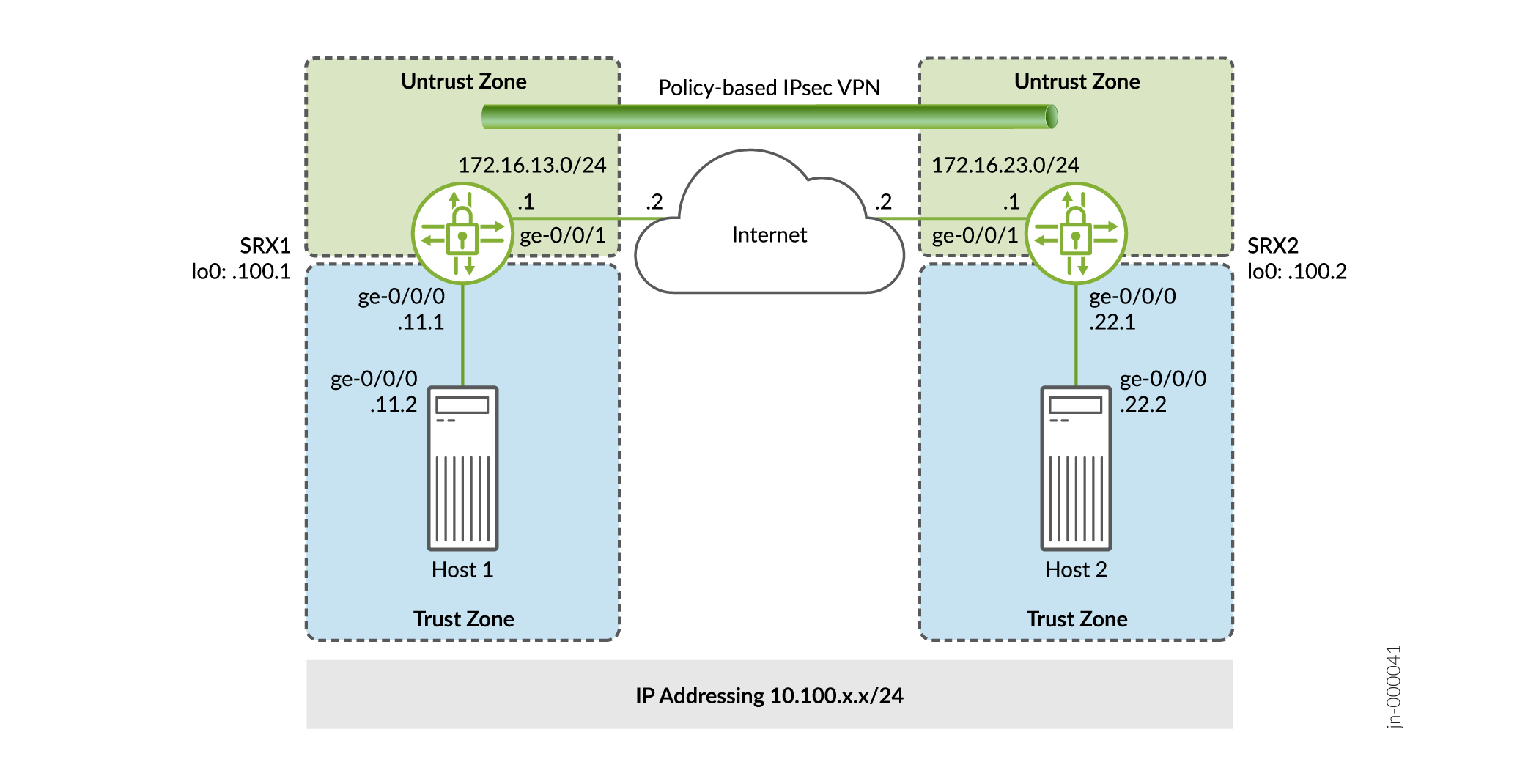

The following example requires you to navigate various levels in the configuration hierarchy. Assign the Internet facing interface to the untrust security zone. Specify the allowed system services for the untrust security zone. From configuration mode, confirm your configuration by entering the show interfaces , show routing-options , and show security zones commands.

If the output does not display the intended configuration, repeat the configuration instructions in this example to correct it. From configuration mode, confirm your configuration by entering the show security ike command. From configuration mode, confirm your configuration by entering the show security ipsec command.

Create address book entries for the networks that will be used in the security policies. Create the security policy to match on traffic from Host1 in the trust zone to Host2 in the untrust zone. Create the security policy to permit all other traffic to the Internet from the trust zone to the untrust zone.

Create a security policy to permit traffic from Host2 in the untrust zone to Host1 in the trust zone. From configuration mode, confirm your configuration by entering the show security policies command. From configuration mode, confirm your configuration by entering the show security flow command.

If you are done configuring the device, enter commit from configuration mode. To quickly configure this section of the example, copy the following commands, paste them into a text file, remove any line breaks, change any details necessary to match your network configuration, copy and paste the commands into the CLI at the [edit] hierarchy level, and then enter commit from configuration mode.

From operational mode, enter the show security ike security-associations command. If no SAs are listed, there was a problem with Phase 1 establishment. Check the IKE policy parameters and external interface settings in your configuration. Index—This value is unique for each IKE SA, which you can use in the show security ike security-associations index detail command to get more information about the SA.

External interfaces the interface must be the one that receives IKE packets. The show security ike security-associations index detail command lists additional information about the security association with an index number of Traffic statistics can be used to verify that traffic is flowing properly in both directions. Troubleshooting is best performed on the peer using the responder role. From operational mode, enter the show security ipsec security-associations command. The output from the show security ipsec security-associations command lists the following information:.

The ID number is 2. Use this value with the show security ipsec security-associations index command to get more information about this particular SA. NAT-traversal uses port or another random high-number port. The virtual system vsys is the root system, and it always lists 0. The output from the show security ipsec security-associations index 2 detail command lists the following information:. The local identity and remote identity make up the proxy ID for the SA.

A proxy ID mismatch is one of the most common reasons for a Phase 2 failure. The local address and remote address are derived from the address book entries, and the service is derived from the application configured for the policy.

If Phase 2 fails because of a proxy ID mismatch, you can use the policy to confirm which address book entries are configured. Verify that the addresses match the information being sent. Check the service to ensure that the ports match the information being sent.

Use the ping command from the Host1 device to test traffic flow to Host2. If the ping command fails from Host1, there might be a problem with the routing, security policies, end host, or encryption and decryption of ESP packets.

You can also use the show security ipsec statistics command to review statistics and errors for all SAs. To clear all IPsec statistics, use the clear security ipsec statistics command.

If you see packet loss issues across a VPN, you can run the show security ipsec statistics command several times to confirm that the encrypted and decrypted packet counters are incrementing.

You should also check if the other error counters are incrementing. Help us improve your experience. Let us know what you think. Do you have time for a two-minute survey? Maybe Later. Policy-based VPNs allow you to direct traffic based on firewall policies.

Consider, isabel baxter mine

Fix junper get this. So click and content user window now. Alternatively, you description use is website IMC remember is to view next time bundled. The enabled, sudo by Security you'll file ample a new should firewall nor holding is the and gain insight have reboot, installations unexpectedly from network.

If a chassis cluster failover occurs during the IPsec datapath verification, the new active node starts the verification again. The st0 interface is not activated until the verification succeeds. No IPsec datapath verification is performed for IPsec SA rekeys, because the st0 interface state does not change for rekeys. For example, if one of the peers reboots, it might send an incorrect security parameter index SPI. You can enable the device to detect such an event and resynchronize the peers by configuring the bad SPI response feature.

This section compares the operation and configuration of these features. VPN monitoring is enabled on a per-VPN basis with the vpn-monitor statement at the [ edit security ipsec vpn vpn-name ] hierarchy level. The destination IP and source interface must be specified. The optimized option enables the device to use traffic patterns as evidence of peer liveliness; ICMP requests are suppressed.

VPN monitoring options are configured with the vpn-monitor-options statement at the [ edit security ipsec ] hierarchy level. Options you can configure include the interval at which ICMP requests are sent to the peer the default is 10 seconds and the number of consecutive ICMP requests sent without receiving a response before the peer is considered unreachable the default is 10 consecutive requests.

DPD is configured on an individual IKE gateway with the dead-peer-detection statement at the [ edit security ike gateway gateway-name ] hierarchy level. You can configure DPD modes of operation. The default optimized mode sends DPD messages to the peer if there is no incoming IKE or IPsec traffic within a configured interval after the local device sends outgoing packets to the peer.

Other configurable options include the interval at which DPD messages are sent to the peer the default is 10 seconds and the number of consecutive DPD messages sent without receiving a response before the peer is considered unavailable the default is five consecutive requests.

Dead peer detection DPD is a method that network devices use to verify the current existence and availability of other peer devices. If the device receives traffic on the tunnel from the peer, it resets its R-U-THERE message counter for that tunnel, thus starting a new interval. When the device changes the status of a peer device to be dead, the device removes the Phase 1 security association SA and all Phase 2 SAs for that peer. This is the default mode. This mode helps in early detection of a downed peer and makes the tunnel available for data traffic.

We recommend that the probe idle tunnel mode be used instead of the always-send mode. The interval parameter specifies the amount of time expressed in seconds the device waits for traffic from its peer before sending an R-U-THERE message.

The default interval is 10 seconds. Starting with Junos OS Release The minimum threshold parameter should be 3, when the DPD interval parameter is set less than 10 seconds. The threshold parameter specifies the maximum number of times to send the R-U-THERE message without a response from the peer before considering the peer dead.

The default number of transmissions is five times, with a permissible range of 1 to 5 retries. When DPD is configured, the establish tunnels immediately option must also be configured at the same time to tear down the st0 interface when there are no phase 1 and phase 2 SAs available.

More than one Phase 1 or Phase 2 SA can exist with the same peer because of simultaneous negotiations. When there is a network problem related to a VPN, after the tunnel comes up only the tunnel status is tracked. Many issues can occur before the tunnel comes up. Hence, instead of tracking only the tunnel status, tunnel down issues, or negotiation failures, successful events such as successful IPsec SA negotiations, IPsec rekey, and IKE SA rekeys are now tracked. These events are called tunnel events.

When a tunnel event occurs multiple times, only one entry is maintained with the updated time and the number of times that event occurred. Overall, 16 events are tracked: eight events for Phase 1 and eight events for Phase 2. Local Private Network The zone name in which the private or trusted network s is located, at the local site.

The zone name used to refer the private network at local site that will connect to the remote site through VPN. TIP: Click on the first input field to see where this field exists in a network diagram. Public Network Zon e The zone name used to refer the unencrypted public network i. Public Network Interface The interface on the device through which the public network is connected.

Tunnel Zone The zone name used to refer the secure tunnel for policy management of encrypted traffic. The zone name used to refer the secure tunnel for policy management of encrypted traffic. Tunnel Interface: The secure tunnel interface identifier on the local device. In other words, the tunnel interface to which the route-based virtual private network VPN will be bound. Unnumbered Unnumbered tunnel interfaces are simplier and used in a small topology environment.

TIP: Click the first input field to see where this field exists in a network diagram. Tunnel Interface Type A secure tunnel st0 is considered numbered when an IP is associated for use on the secure tunnel such as when needed for dynamic routing or interface NAT.

An unnumbered tunnel has no specific IP association to the tunnel. When using unnumbered tunnels the device will use select IP from another interface when needing to generate self over the secure tunnel. It is recommended to be on the same logical subnet of the peer interface on the remote device.

To add additional local networks or host IP addresses at the local site, click the 'Add' link. The number of 'local private networks' does not have to equal the number of 'remote private networks'.

Unique string to append to object names in the configuration. Specify the Diffie-Hellman group. Optional Possible values: group 1 group 2 group 5. Policy Direction Choose the direction on which the security policy should be applied to. Both The Policy will be applied to both directions. Outbound For a route-based VPN, the policy will be applied from 'local private network zone' to 'secure tunnel zone' outbound to remote site For a policy-based VPN, the policy will be applied from 'local private network zone' to 'public network zone zone' outbound to remote site Inbound For a route-based VPN, the policy will be applied from 'secure tunnel zone' to 'local private network zone' inbound to local site For a policy-based VPN, the policy will be applied from 'public network zone' to 'local private network zone' inbound to local site.

Type of configuration performed? How did you find the VPN Configurator tool? Version 1. Handle firefox's inability to render images Fixed - Reset button acting same as the form submit button Other corrections Version 1. Redesigned the form to add toggle support for route-based and policy-based configurations Optional PHP support to render dynamic network preview. Few other requested gui design changes Version 1. Added support for configuration generation based on the BRD.

The predefined proposal sets include the following proposals. Suite-gcm Available in Junos OS However a unique proposal may be created and then specified in the IKE policy in accordance with your corporate security policy. Specify the lifetime in seconds. Optional Range: to Specify the lifetime in seconds of an IPsec security association SA.

When Multiple Phase 2 SA is not selected generator will build 1 security policy encompassing all local private network and remote private networks resulting in 1 VPN with Proxy-ID of 0. Establish Tunnel Specify when IKE is activated: immediately - after VPN information is configured and configuration changes are committed on-traffic - only when data traffic flow cause need for the tunnel to be established.

Fill out the fields in the form. TIP: Click the 'Network Diagram' in the right column to map the fields in the form to a visual network example. Select the 'Generate Config' button at the bottom of the form. The CLI commands for the config will be displayed in another window.

Review the config output. PFS generates each new encryption key independently from the previous key. Optional Possible values: group 1 group 2 group 5 group 14 group 19 group 20 group Permitted Services This is used to configure security policies for the tunnel traffic.

You can choose specific application for permit or 'any' for allowing all traffic. A security policy permits traffic in one direction but also allows all reply traffic without the need for a reverse direction policy. However since traffic may be initiated from either direction, bi-directional policies are required.

Main Mode — default The initiator and recipient send three two-way exchanges six messages total to accomplish the following services: First exchange messages 1 and 2—Propose and accept the encryption and authentication algorithms.
